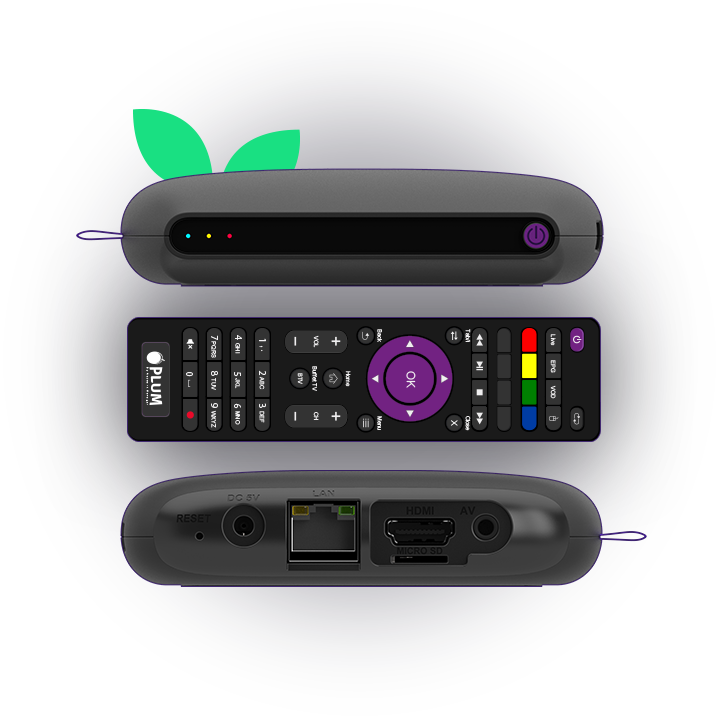

PLUM iTV
ANDROID BOX

Quad-core 4K android OTT set-top box helps you to discover
a whole new TV experience.

ARM Quad 64-bit Cortex-A53 up to 1.5GHz DVFS

Penta Core Mali-450 up to 750MHz + DFS

HDMI2.0b, AV

Flash: eMMC 8GB

DRAM: DDR3 1GB

ANDROID AOSP

Offer a consistent experience with other Android-powered devices.

SYSTEM
CPU: ARM Quad 64-bit Cortex-A53 up to 1.5GHz DVFS
GPU: Penta Core Mali-450 up to 750MHz + DFS
DRAM: DDR3 1GB (2G Optional)
Flash: eMMC 8GB (4GB, 16GB, 32GB, 64GB Optional)
OS: Android AOSP
NETWORK
RJ45 Interface 10M/100M adaptive (10M/100M/1000M Optional)
Build in Wi-Fi 2.4GHz 802.11b/g/n (2.4GHz/5GHz Optional)
Bluetooth 4.0 (Optional)
Support most external 3G/4G USB dongle (Optional)
VIDEO OUTPUT
HDMI2.0b, AV
NETWORK
RJ45
PERIPHERAL INTERFACE
USB 2.0 x2, Micro SD card
POWER INTERFACE
DC 5V
OTHER INTERFACE
Standby key, IR receiver, Power/IR/Net LED indicator
VIDEO
Decoder: H.265 10bit 4K*2K@60fps, H.264 AVC/MVC 4K*2K@30fps, VP9, AVS+, MPEG1/2/4
ASP, WMV/VC-1, RealVideo8/9/10
Format: MKV, WMV, M2TS, MOV, MP4, AVI, MPG, MPEG, DAT, VOB, FLV, 3GP, DIVX, F4V, ASF etc.
AUDIO
Decoder: MPEG1/2/4, MP3, AAC/AAC+, WMA/WMA-pro, FLAC, OGG (AC3 Optional)
Format: MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, MP1/2 etc.
SUBTITLE FORMAT
SRT, ASS, SSA etc.
PHOTO FORMAT
HD JPEG/BMP/PNG etc.
INPUT VOLTAGE
DC in 5V/2A
POWER CONSUMPTION
8V Max
OPERATION
TEMPERATURE
0 ~ 40C
PHYSICAL
CHARACTERISTICS
Size(L*W*H): 108mm*98mm*26mm
Material: plastic
PROPOSED ACCESSORY
8V Max

Live, TimeShift,
CatchUp, EPG ...

PLUM iTV Smart Box helps you discover a whole new TV experience.
Enjoy in various content in 4k resolution – PLUM iTV Smart Box with Android OS makes Smart every TV and offers you an abundance of different content for entertainment and education via supported applications, as well as through connection with your smartphone.

ACCESS TO
THOUSANDS OF APPS

Besides the PLUM application, STB is compatible with a lot of other android applications that can be downloaded and installed from the Play Store, or from some other sources.
